KeiCo Western 2.0 - Two-Bedroom Modular Glamping Pod
A substantial 6.6 × 4.6 m insulated Nordic timber pod with two private sleeping rooms, shared living space, a dedicated bathroom and a covered porch.
Two Private Bedrooms. One Considered Guest Retreat.
The KeiCo Western 2.0 develops the familiar curved form of the original Western Glamping Pod into a larger, two-module accommodation model designed around longer and more comfortable stays.
Measuring 6.6 × 4.6 m externally, the Western 2.0 can provide two separate sleeping rooms, a shared living and kitchen zone, a dedicated bathroom and a covered entrance porch within one distinctive Nordic timber structure.
Plans No. 1 and No. 2 create clear two-bedroom accommodation layouts. Plan No. 3 offers an alternative arrangement with two larger internal zones and two panoramic windows across the front elevation, with its final sleeping, living or alternative room uses agreed during project specification.
The result is more than a sleeping pod. It is a compact, self-contained accommodation environment that can be developed for glamping sites, holiday parks, boutique stays, rural retreats and other guest-led settings.
KeiCo can help connect the pod, floor plan, fit-out, foundations, services, access, delivery and installation within one clearly defined project scope.
One Footprint. Three Verified Layouts.
Each Western 2.0 plan uses the same 6.6 × 4.6 m external footprint, while changing the internal circulation, glazing and balance between shared and private space.

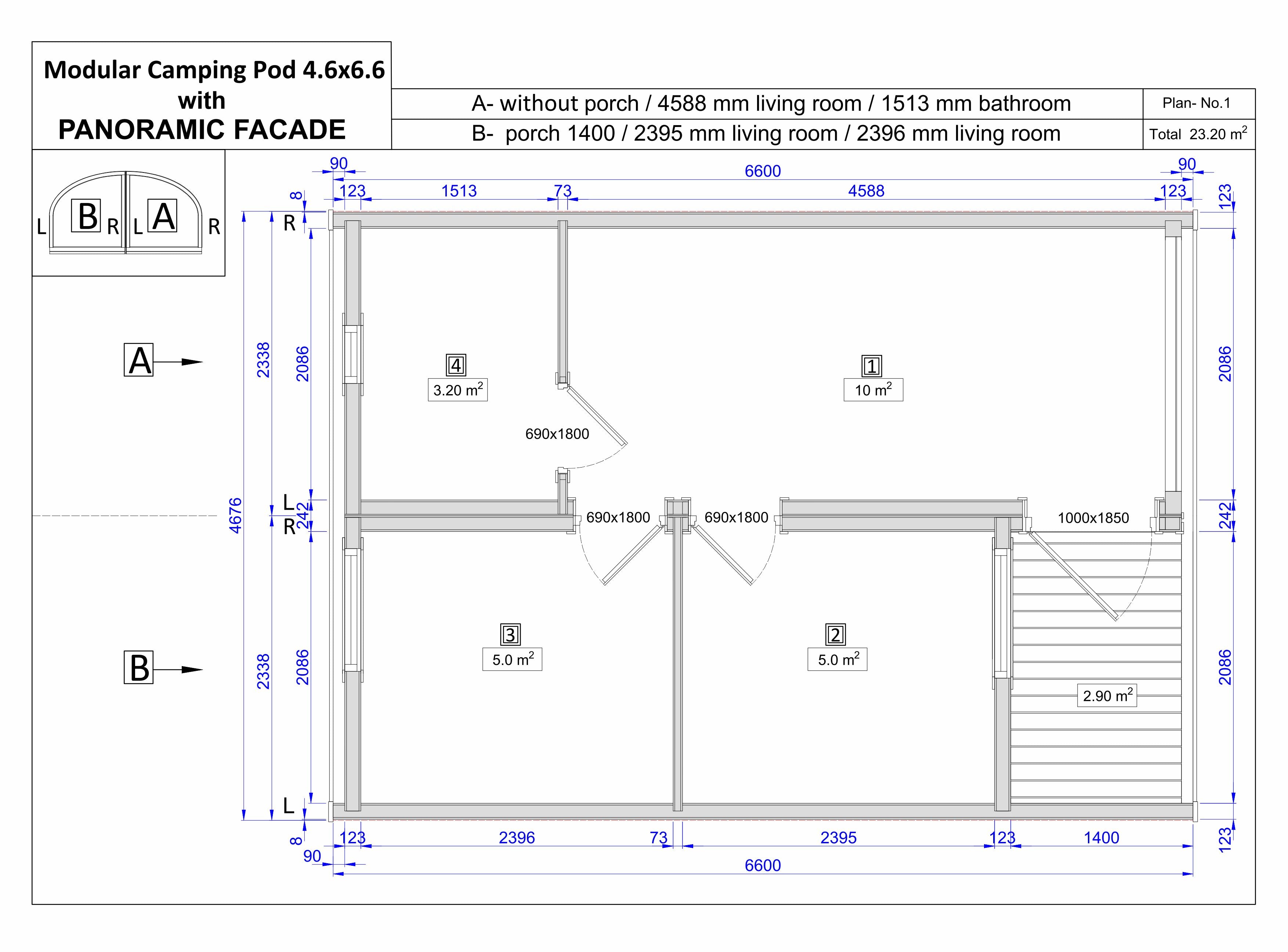

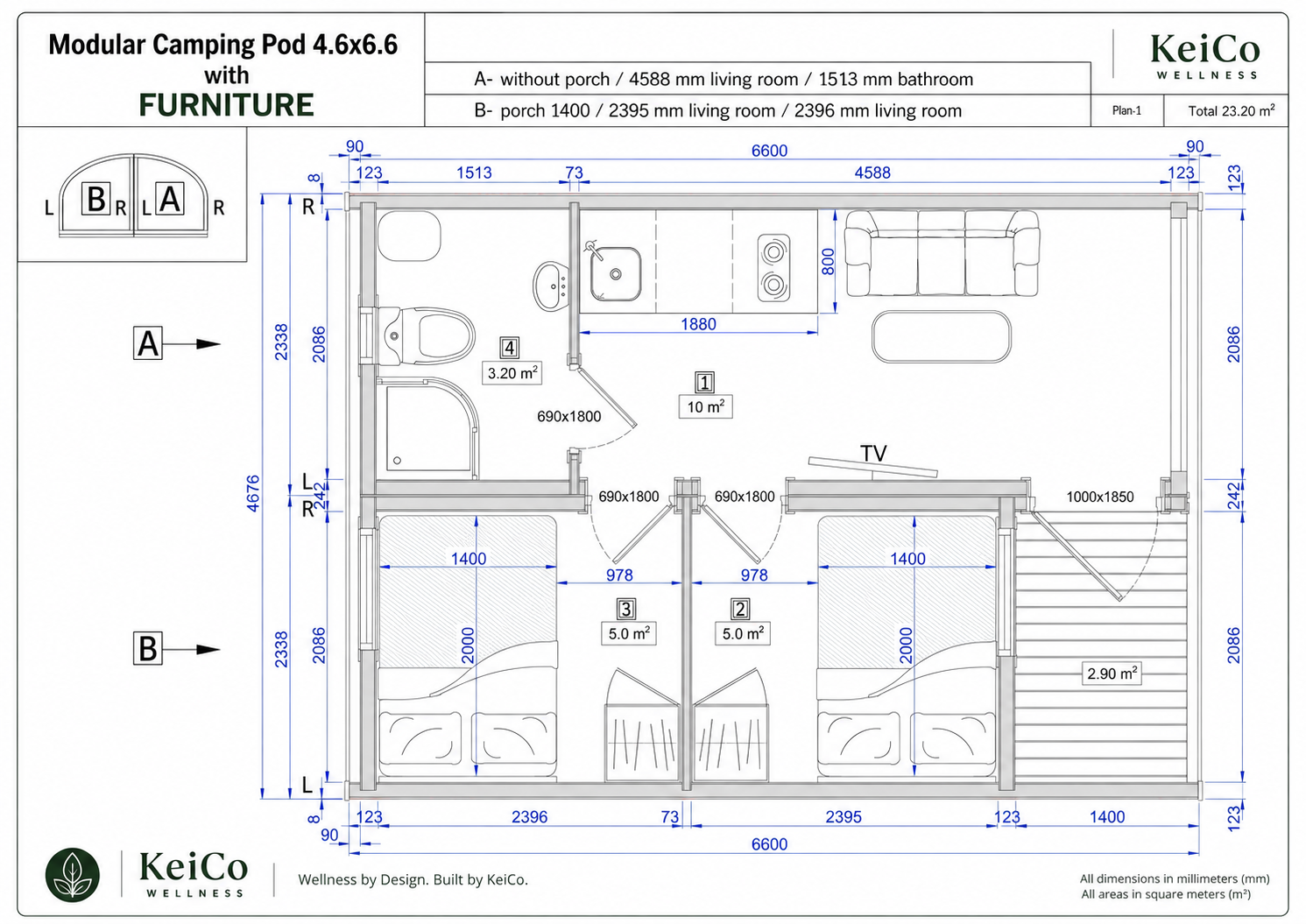

Plan No. 1 — Panoramic Façade
Plan No. 1 provides a stated 23.20 m² internal floor area, plus a 2.90 m² covered porch.
The plan comprises:
- One 10.0 m² main living and kitchen room
- Two private 5.0 m² sleeping rooms
- One 3.20 m² bathroom space
- One 2.90 m² covered porch
This is the balanced two-bedroom route shown in the original KeiCo concept plan, with a central shared space and similarly sized private rooms.

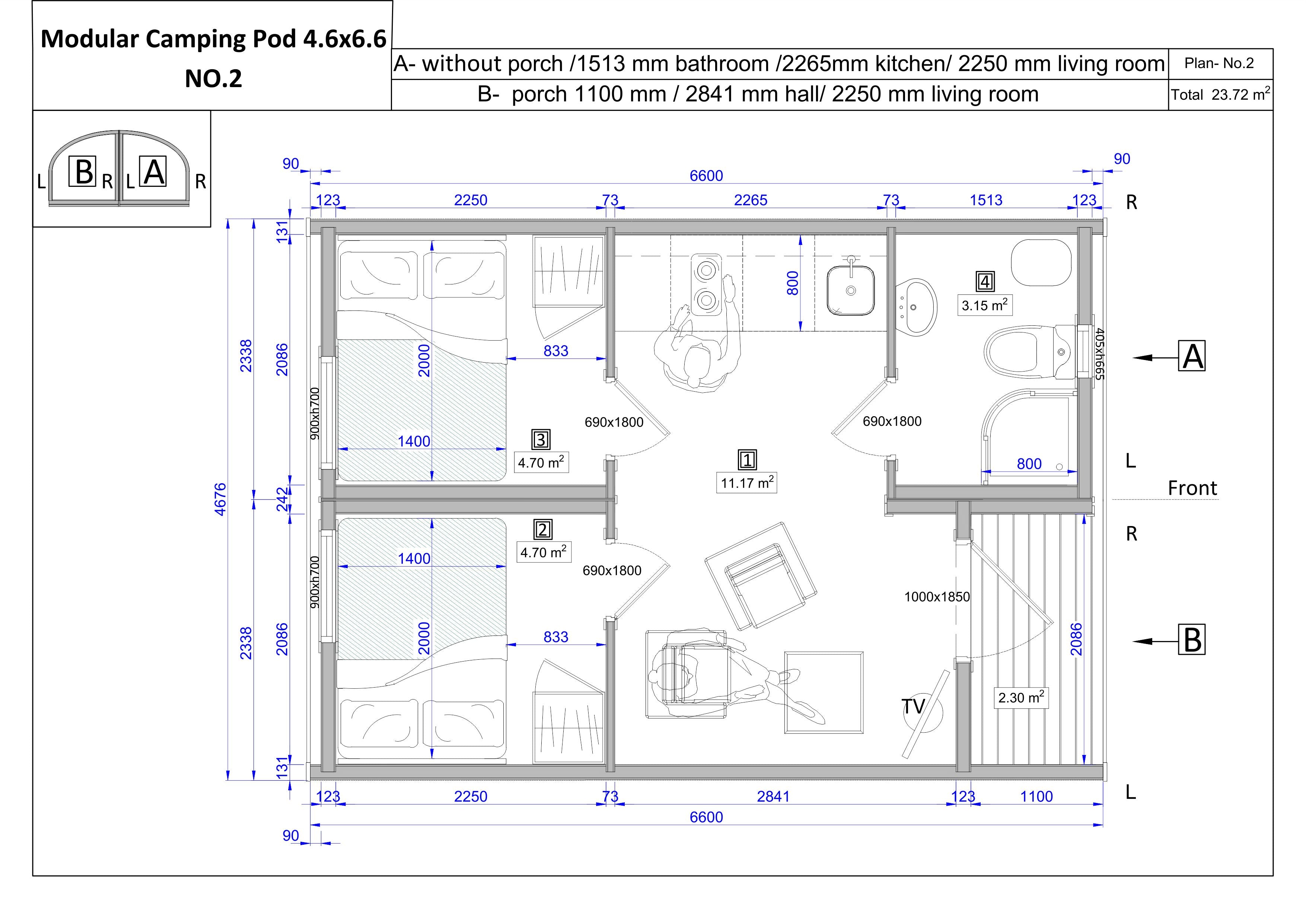

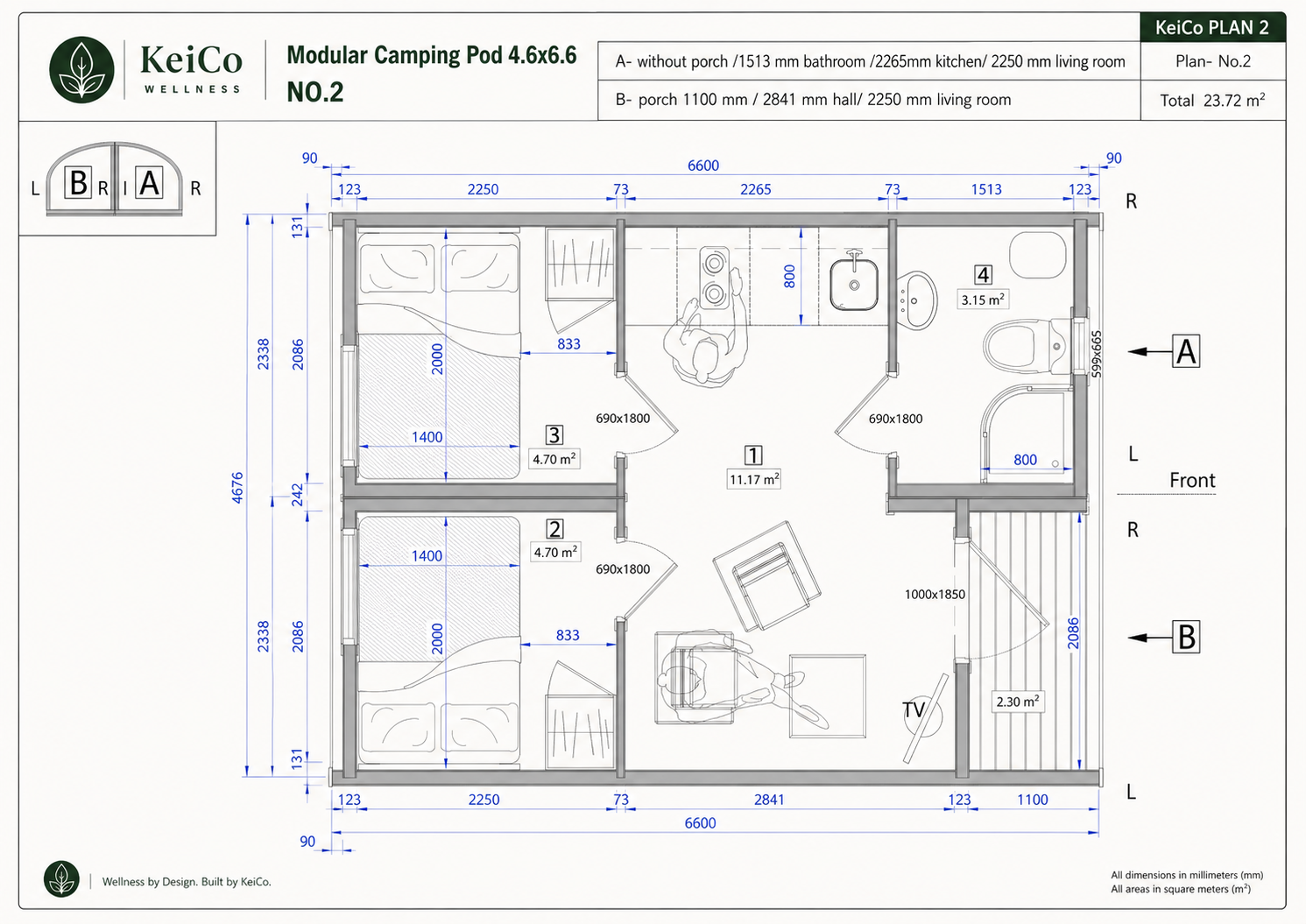

Plan No. 2 — Furnished Two-Bedroom Layout
Plan No. 2 provides a stated 23.72 m² internal floor area, plus a 2.30 m² covered porch.
The plan comprises:
- An approximately 11.17 m² combined living, kitchen and circulation zone
- Two private sleeping rooms of approximately 4.70 m² each
- One 3.15 m² bathroom space
- One 2.30 m² covered porch
The furnished drawing illustrates one way to organise seating, food preparation and sleeping accommodation. Furniture, cabinetry, appliances and sanitary equipment are illustrative unless expressly included in the approved quotation.

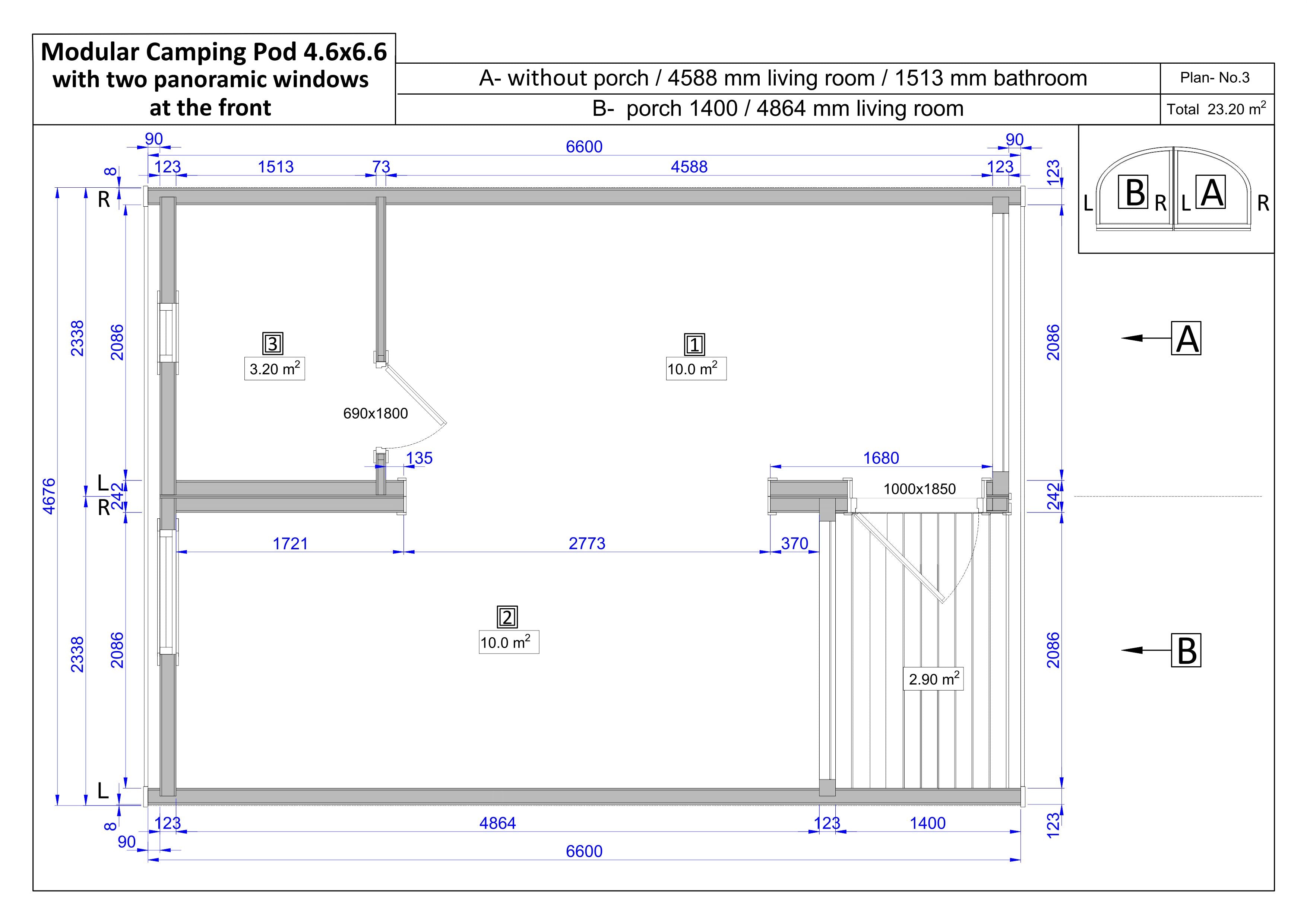

Plan No. 3 — Two Panoramic Front Windows
Plan No. 3 provides a stated 23.20 m² internal floor area, plus a 2.90 m² covered porch.
The plan comprises:
- Two internal zones of approximately 10.0 m² each
- One 3.20 m² bathroom space
- One 2.90 m² covered porch
- Two panoramic windows across the front elevation
This is the more flexible project layout. Its final bedroom, lounge, treatment, office or alternative room uses must be agreed during specification rather than inferred from the unfurnished drawing.
All areas are taken from the supplied plans. Final approved construction drawings take precedence, and room areas should not be treated as usable furniture clearances.
Designed Around Longer Stays

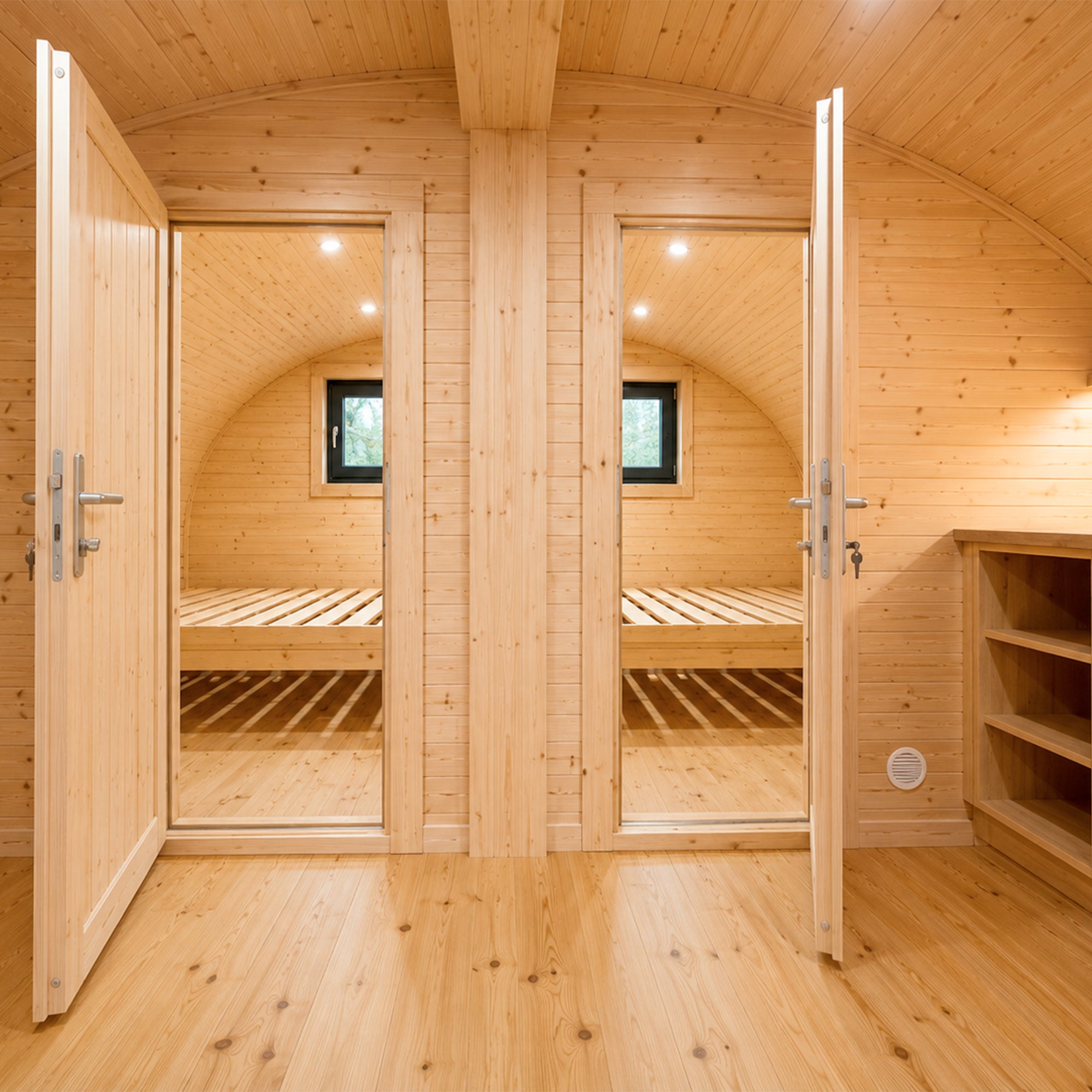

The Western 2.0 separates private sleeping space from the shared part of the stay.
Rather than asking every guest activity to take place within one open room, Plans No. 1 and No. 2 provide two private sleeping rooms alongside a central living and kitchen area.
This makes the pod particularly relevant for:
- Families travelling together
- Friends sharing a glamping stay
- Parents and children requiring separate rooms
- Two couples, subject to the selected bed layout and occupancy assessment
- Hospitality operators wanting a broader guest proposition than a studio pod
- Longer stays where privacy and internal organisation matter
Bed size, storage, circulation, ventilation, escape provision and maximum occupancy are resolved before the selected plan is approved.

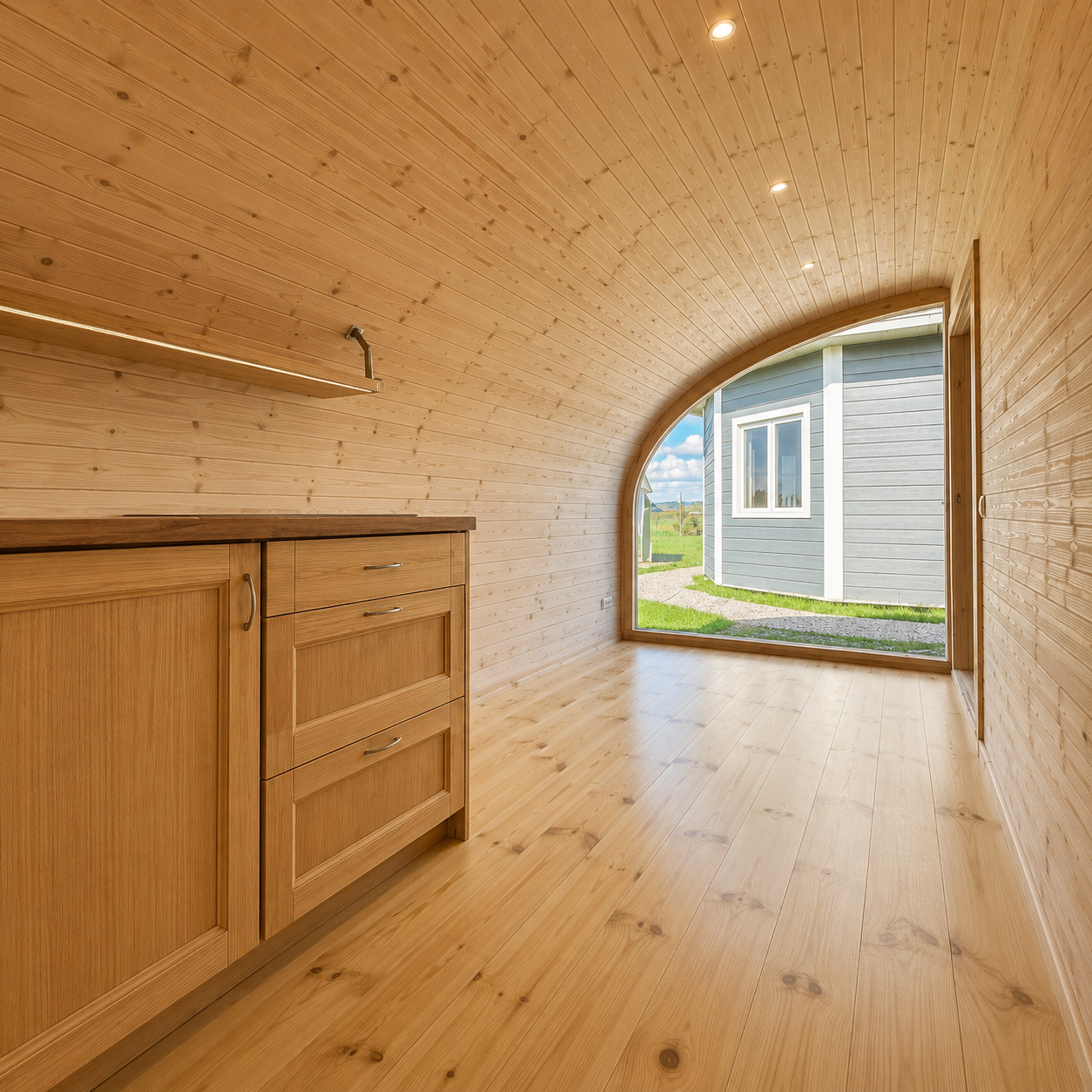

Shared Living and Kitchen Zone
Plans No. 1 and No. 2 place a shared living and kitchen zone between the private rooms and bathroom.
This creates a practical central space for preparing food, dining, relaxing and moving between the principal rooms without using a bedroom as a thoroughfare.

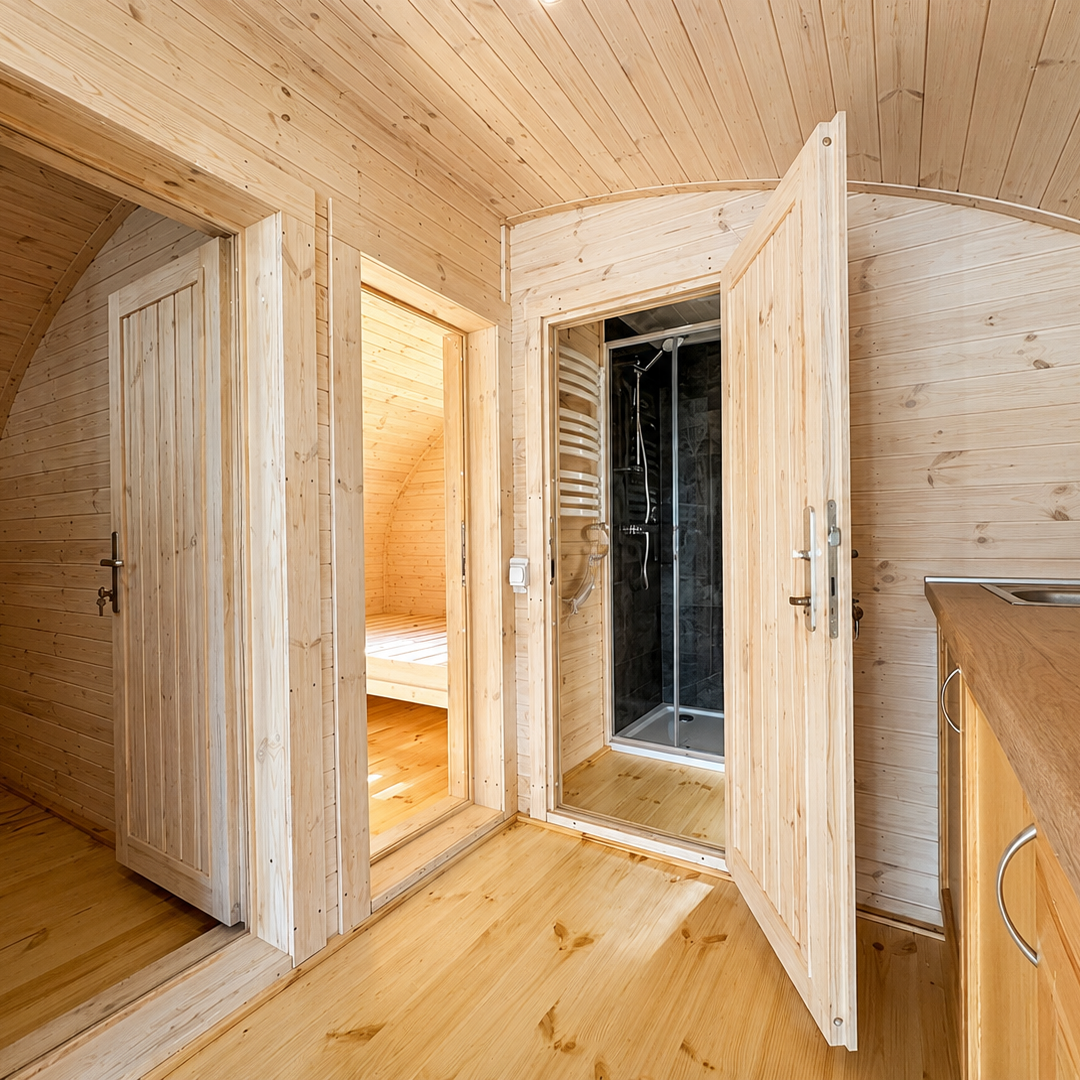

The supplied concept imagery illustrates a compact worktop, sink and storage arrangement. The furnished Plan No. 2 also demonstrates how food-preparation space and informal seating could work together.
Kitchen furniture and equipment are configured separately. The final cabinetry, sink, appliances, electrical load, water supply, waste connection, ventilation and clearances are confirmed through the Functional Kitchen Upgrade.

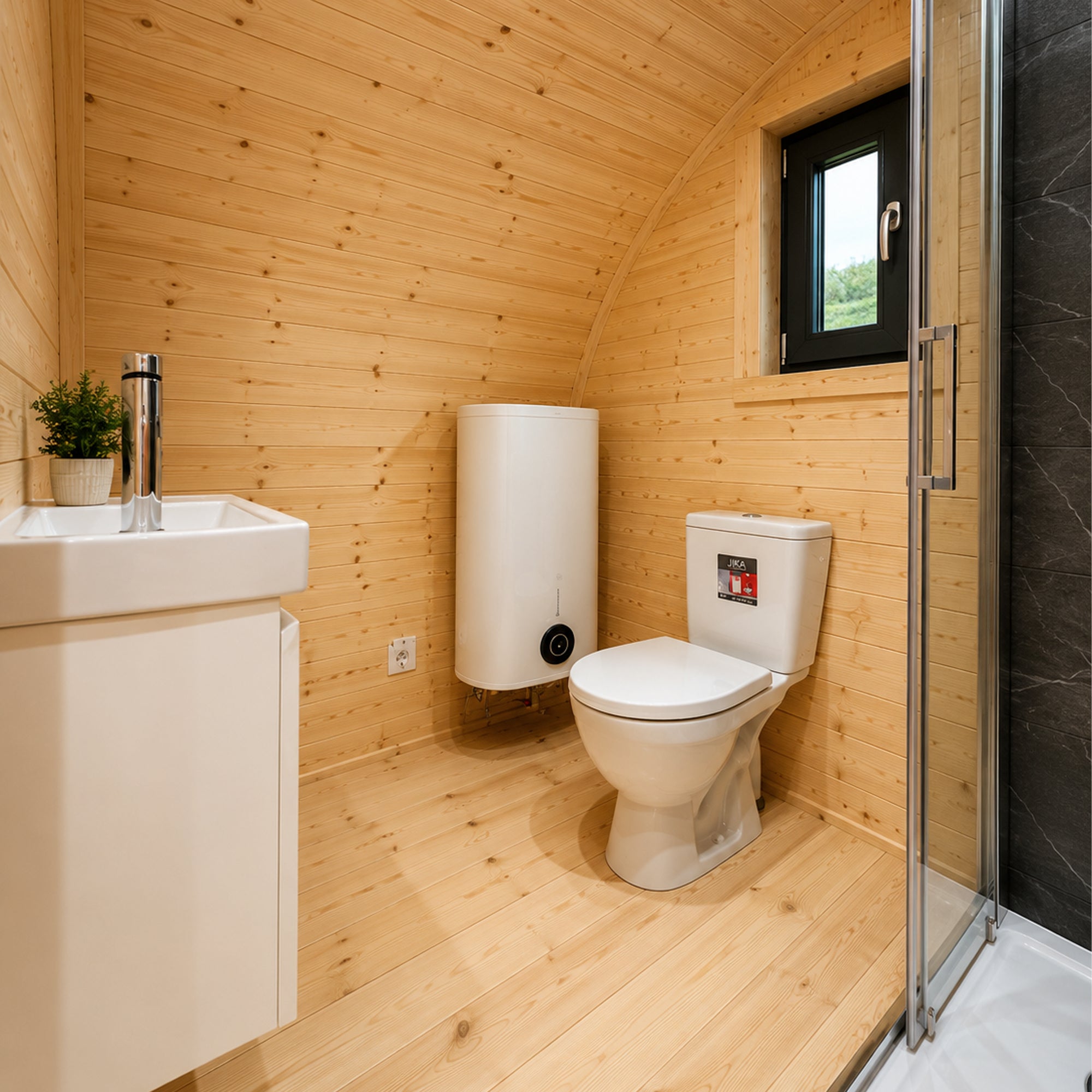

Dedicated Bathroom
Each plan contains a separate bathroom space of approximately 3.15–3.20 m², depending on the selected layout.
This creates a defined area in which a shower, toilet and basin package can be developed without compromising the private bedrooms or main living zone.
The room and sanitary fit-out are treated separately. Shower arrangement, sanitary ware, hot-water provision, extraction, waterproof finishes, drainage, access and service connections are confirmed through the Bathroom Fit-Out Upgrade and final project quotation.
Insulated Nordic Timber Construction
The Western 2.0 is formed from two insulated half-pod modules that can be brought together on site, subject to the selected delivery and installation route.
The confirmed core construction comprises:
- Solid Nordic pine timber construction
- Insulated pine timber floor
- Insulated wall construction
- Bitumen-shingled curved roof
- Integrated ventilation
- Anthracite-painted windows
- Single-leaf entrance door

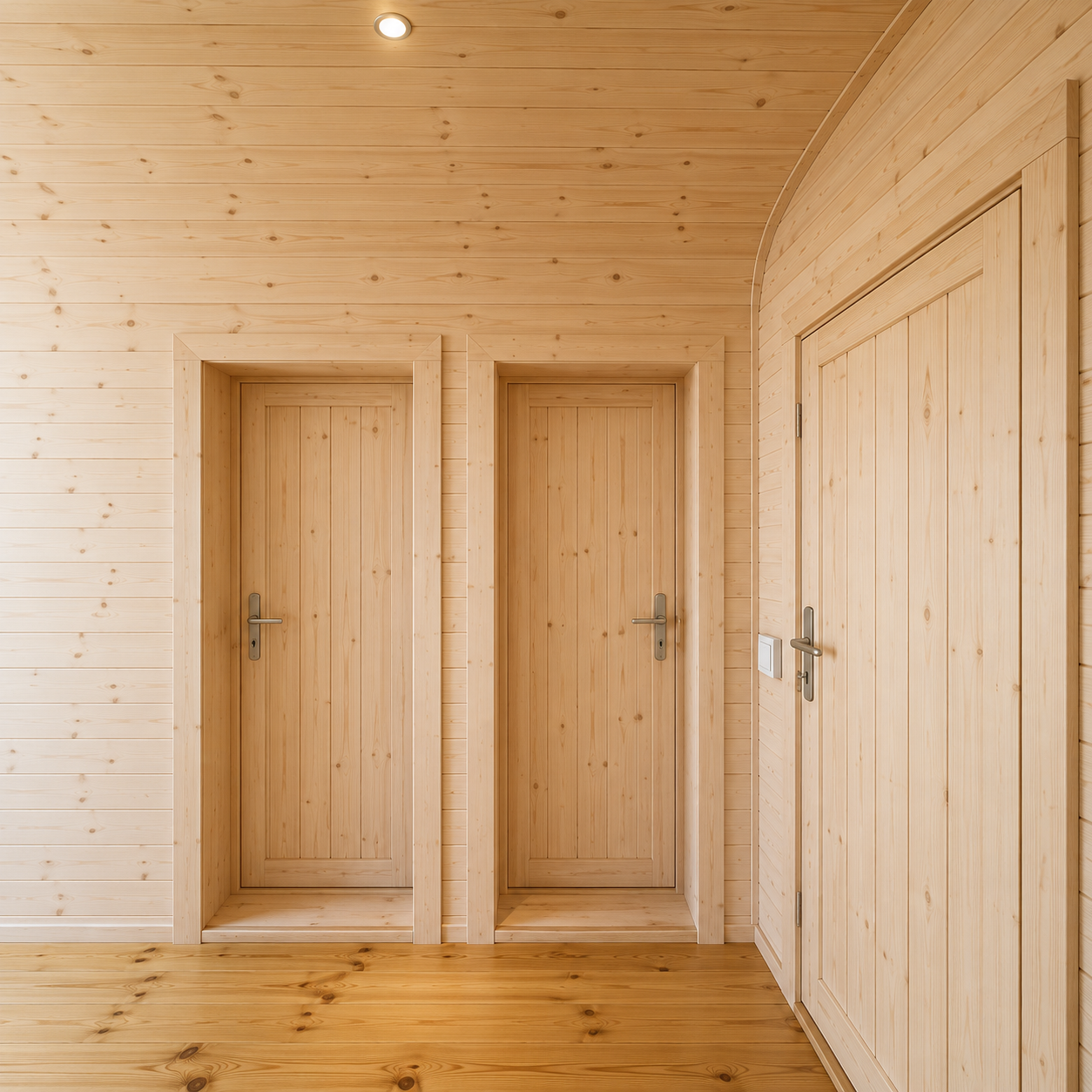

- Internal room divisions and doors according to the approved plan
- Covered entrance porch
- 28 mm impregnated porch decking boards

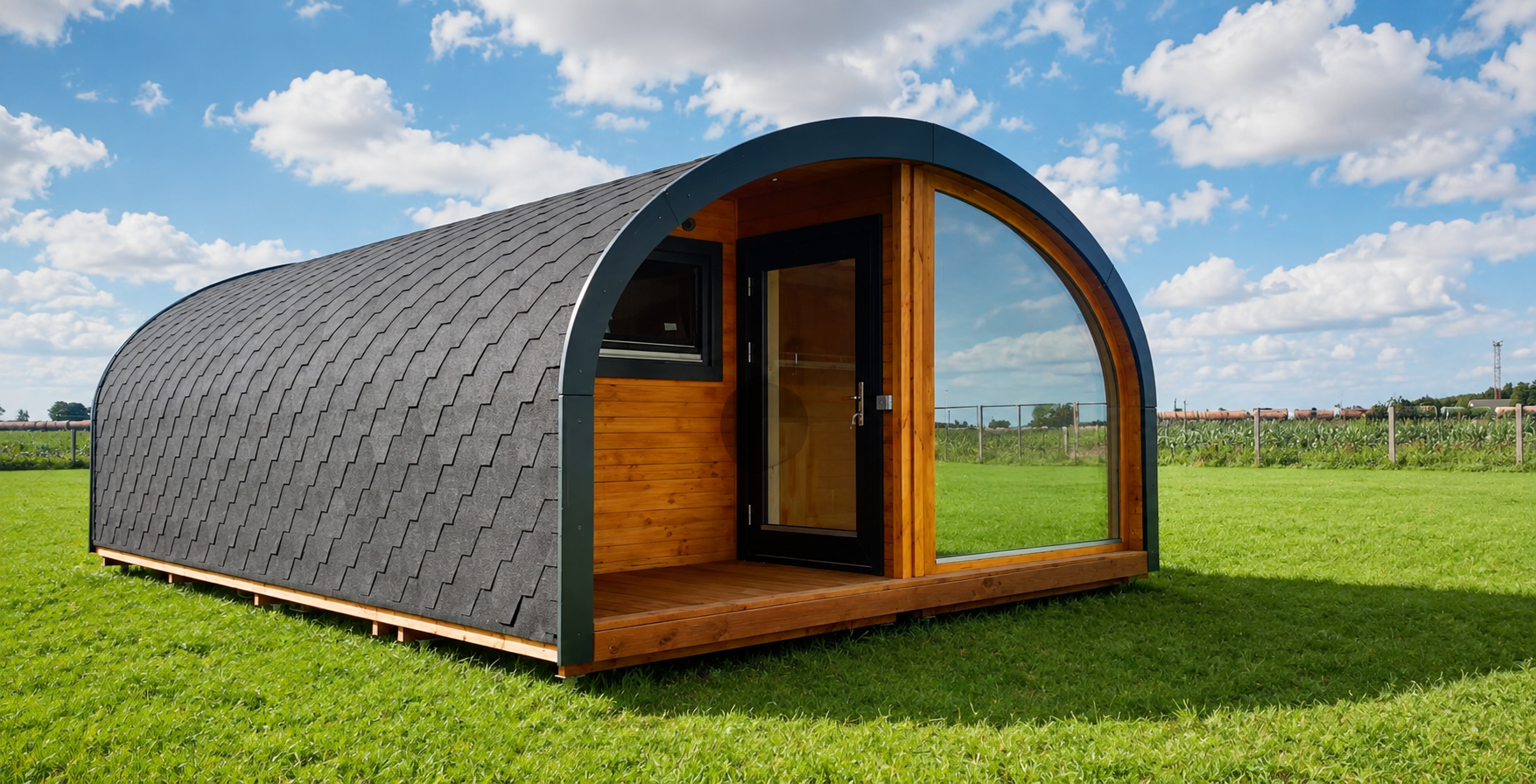

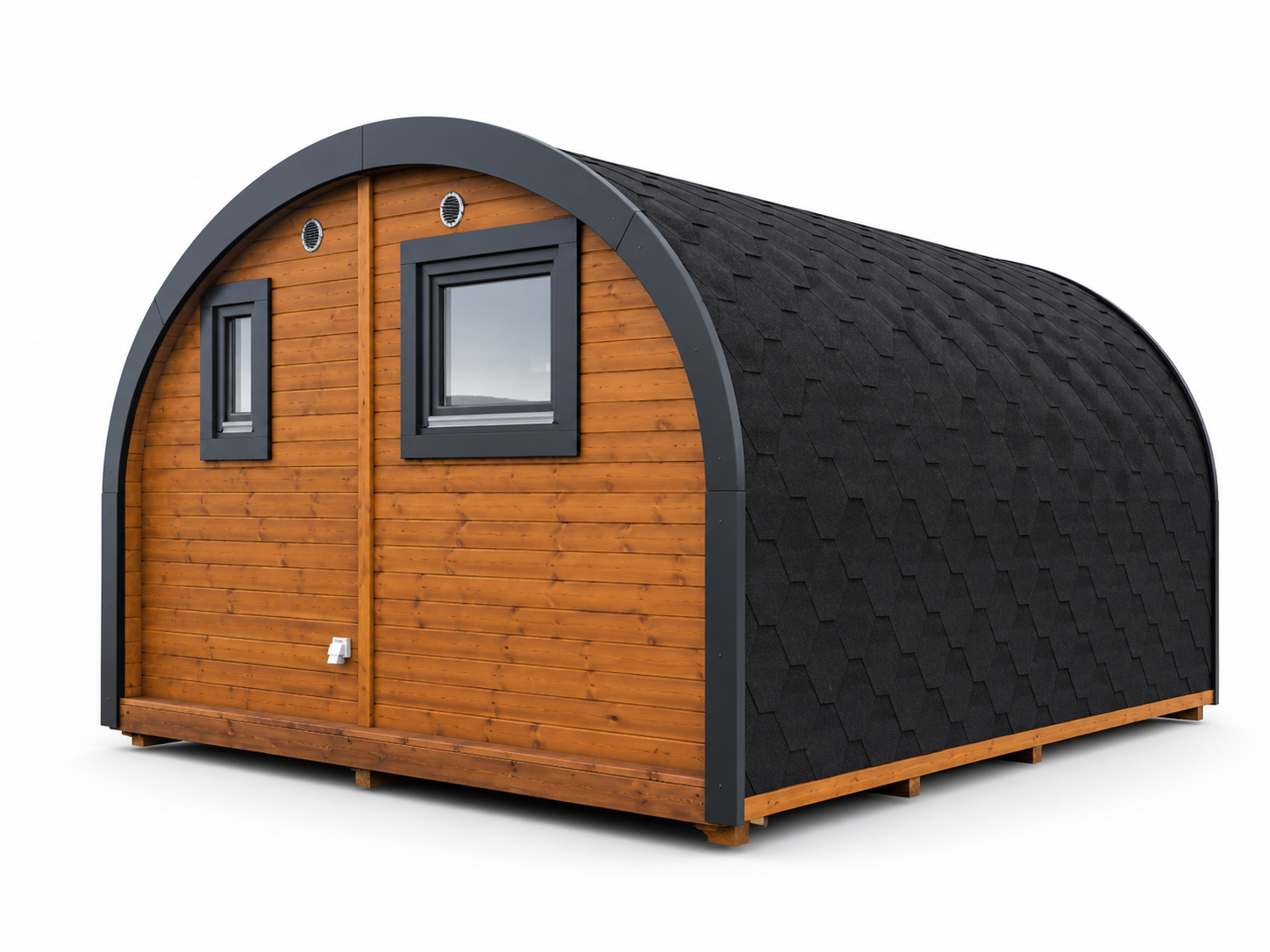

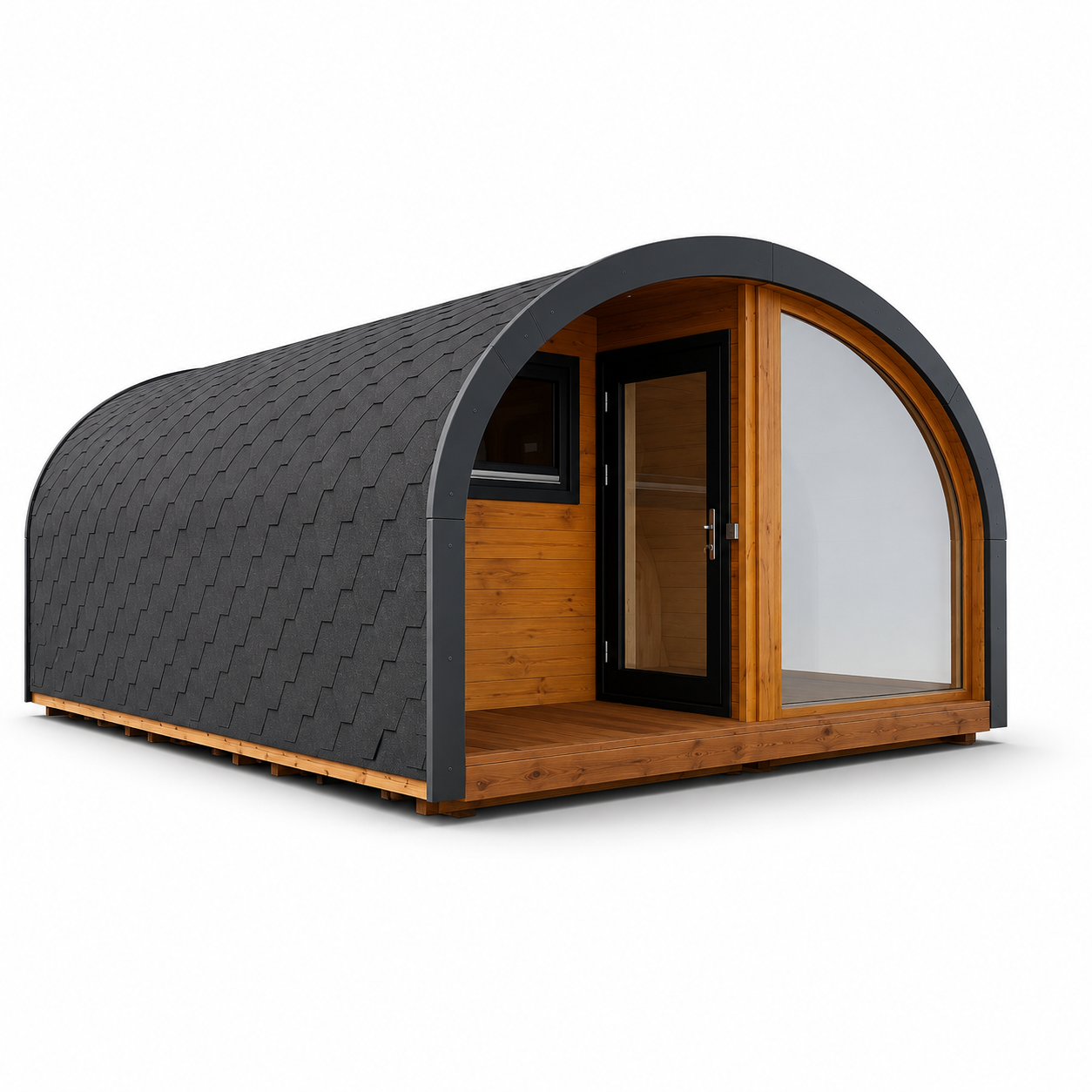

The arched roof, warm timber-facing and dark external trim preserve the recognisable character of the original Western family while allowing the larger 2.0 model to meet a different accommodation requirement.
Insulation build-up, thermal values, heating design, glazing performance, ventilation, roof construction and internal finishes are confirmed within the approved technical specification. Actual comfort and operating performance depend on the completed specification, intended use, site exposure and local climate.
Familiar Western Upgrades, Developed for the 2.0
The original Western established a clear upgrade journey around kitchen, bathroom and electrical fit-out.
The Western 2.0 retains that familiar structure, with each package recalculated around the larger accommodation layout and selected floor plan.
Functional Kitchen Upgrade
Develop the central living zone for longer guest stays with a project-specific kitchenette.
The package can be configured to include:
- Fitted base and wall storage
- Worktop and splashback
- Sink and mixer tap
- Two-burner cooking hob
- Fridge or fridge-freezer provision
- Appliance and utensil storage
- Water and waste connections within the agreed KeiCo scope
Final appliance models, cabinetry dimensions, electrical demand, ventilation and service requirements are confirmed before the package is approved and priced.
Bathroom Fit-Out Upgrade
Convert the dedicated bathroom space into a self-contained guest facility.
The package can be configured to include:
- Shower enclosure and tray
- Toilet
- Basin and tap
- Waterproof wall and floor finishes
- Mechanical extraction
- Hot-water provision
- Internal plumbing and waste connections within the agreed scope
Sanitary ware, accessibility, drainage, water pressure, hot-water capacity and winterisation requirements remain project-specific.
Electrical First-Fix Package
Prepare the pod for the approved lighting, sockets, kitchen equipment, hot water, heating and operational systems.
The first-fix scope can include:
- Internal cable routes
- Circuit preparation
- Distribution and isolation provision
- Cabling for lighting, sockets and selected equipment
- Coordination with the agreed incoming supply
The required incoming supply is calculated from the final electrical load schedule and must be connected by a suitably competent electrical installer.
Electrical Second-Fix Package
Complete the visible electrical installation after the layout and first-fix design have been approved.
The package can include:
- Internal spot lighting
- General power sockets
- Kitchen and bathroom connection points
- External architectural lighting
- Switching, controls and final accessories
Heating, hot-water equipment, data, emergency lighting, fire detection and commercial operating requirements are specified separately where applicable.
Additional Project Options
Subject to compatibility and quotation, the Western 2.0 may also be developed with:
- Space-heating package
- Hot-water system
- Alternative internal or external finishes
- Approved glazing or façade options
- Furniture and storage package
- Decking, steps, balustrades or an access ramp
- Foundations and groundwork
- Service trenching and utility connections
- Delivery and professional installation
- Landscaping and wider guest-area works
Core Western 2.0 Specification
The Western 2.0 core construction includes:
- One 6.6 × 4.6 m Western 2.0 pod structure
- Two-module insulated Nordic pine shell
- Insulated pine floor and insulated walls
- Bitumen-shingled curved roof
- Windows and entrance treatment associated with the approved plan
- Anthracite-painted window finish
- Single-leaf entrance door
- Internal room divisions and doors according to the approved drawing
- Ventilation
- Covered porch
- 28 mm impregnated porch decking
- Product specification and project coordination before final quotation
Configured Separately
Unless expressly included within the selected options or approved quotation, the following remain separate from the core pod specification:
- Kitchen cabinetry and appliances
- Bathroom sanitary ware and fit-out
- Space heating and hot water
- Electrical first-fix and second-fix packages
- Furniture, beds and loose equipment
- Foundations, base and groundwork
- External utility connections
- Steps, ramps, balustrades and surrounding decking
- Delivery, unloading and installation
- Planning, building-control, licensing and professional fees
- Landscaping and wider site works
From Pod Selection to a Site-Ready Project
A successful accommodation unit depends on more than the pod itself.
KeiCo can help bring together:
- Floor-plan selection
- Kitchen and bathroom specification
- Heating, hot-water and electrical requirements
- Foundations and base design
- Water, waste and power coordination
- Delivery and vehicle-access review
- Unloading and assembly planning
- Professional installation
- Steps, decks and surrounding access
- Planning-information support
- Coordination with other appointed contractors
The resulting quotation defines what KeiCo will supply, which elements remain provisional and what sits within the client’s or another contractor’s scope.
One plan. One coordinated specification. One clearer route to opening the space.
Suitable for Hospitality and Guest-Led Settings
The Western 2.0 is particularly suited to:
- Glamping sites
- Holiday parks
- Farm and rural diversification projects
- Boutique hospitality retreats
- Short-stay guest accommodation
- Woodland, lakeside and countryside settings
- Family-focused holiday accommodation
- Retreat or treatment accommodation where the selected plan and approvals allow
Use as permanent accommodation, a residential annexe, workplace, treatment room or paying guest accommodation must be assessed against the proposed site, intended operation and relevant approvals.
Manufacture and Lead Time
Each Western 2.0 is manufactured to order around the approved plan and project specification.
The production and installation programme is confirmed after:
- Floor-plan approval
- Fit-out selection
- Technical specification
- Site and access review
- Base and service coordination
- Deposit and order confirmation
The current manufacturing lead time is confirmed with the approved quotation. Site works, service connections and installation availability may affect the overall project programme independently of the pod’s manufacturing period.
