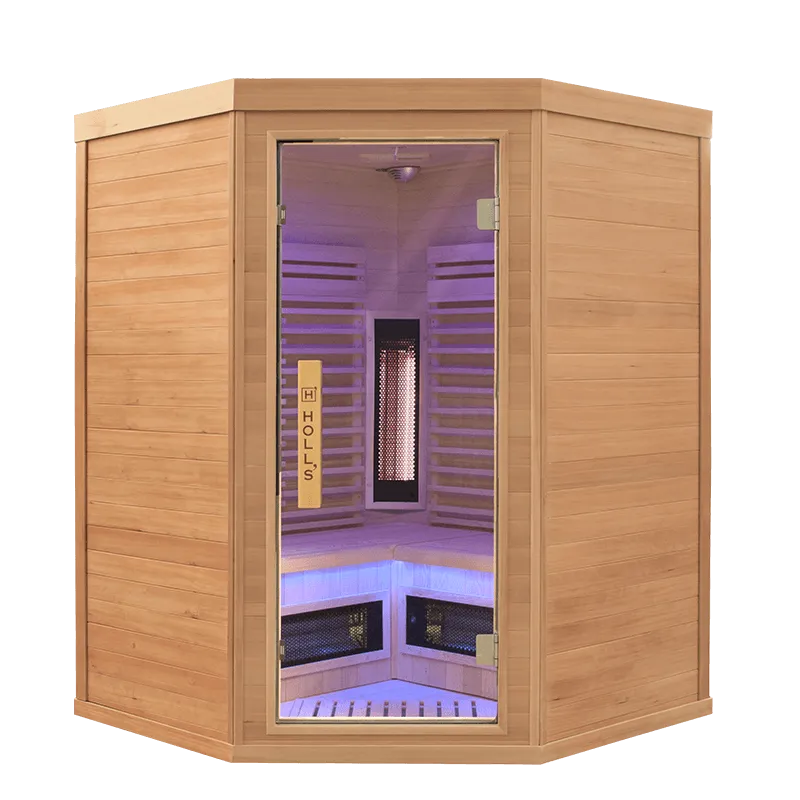

A corner-format infrared cabin with room to share
The Holl's Purewave Evo 3C uses a balanced 140 x 140 cm corner footprint to create space for three to four seated users. Its angled glazed entrance opens the cabin visually, while Canadian spruce and smooth Abachi contact surfaces retain the warm, classic Purewave character.
Seven selectable Dual Healthy emitters combine Quartz and Magnesium technologies, supported by a carbon floor panel. Together they cover IR-A, IR-B and IR-C, letting you choose a more direct or more enveloping character of warmth.
At a glance
- Three to four seated places
- Corner footprint: W 140 x D 140 x H 190 cm
- 2,600 W infrared system
- Seven Dual Healthy Quartz and Magnesium emitters plus one carbon floor panel
- FSC-certified Grade A Canadian spruce cabin
- Abachi bench and headrest, with a 49 cm-deep bench
- 8 mm safety-glass door
- Touch-sensitive control panel
- Seven-colour LED chromotherapy
- USB, MP3, FM radio and Bluetooth resonance audio
Choose the character of the heat

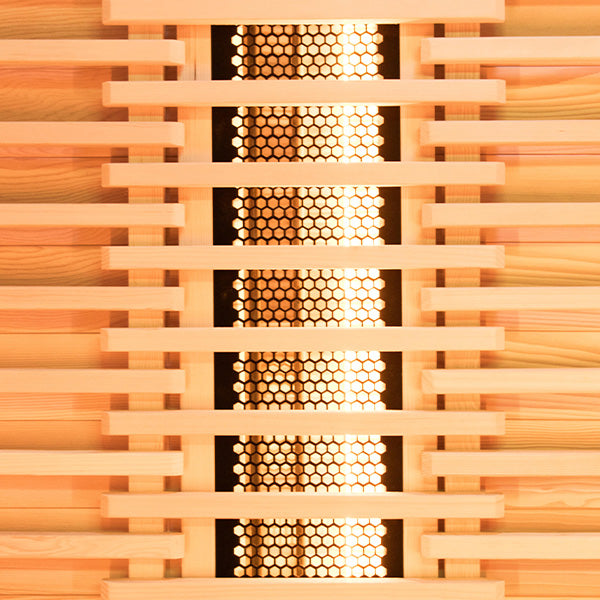

Each Dual Healthy emitter combines Quartz and Magnesium elements. Quartz provides a more immediate, focused sensation, while Magnesium produces a gentler, more enveloping warmth. The carbon floor panel adds steady low-level warmth beneath the seated area. Use the controls in accordance with the Holl's manual to set the cabin for the kind of session you prefer.
Made for a corner

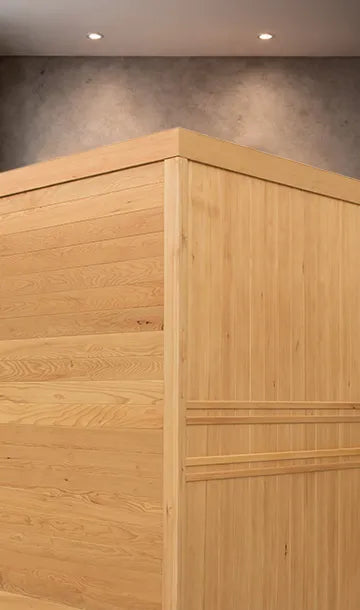

The 3C layout is designed for rooms where a square corner position makes better use of the available space. Its angled entrance and glazed door soften the visual mass of the cabin. Inside, the Abachi bench follows the wider seating arrangement while maintaining the 49 cm depth used across the Purewave range.
Lighting, sound and control
The central touch-sensitive panel brings time, temperature, lighting and audio settings together. Seven-colour LED chromotherapy changes the visual ambience, while the resonance audio system uses the cabin structure to distribute sound without prominent speaker grilles. USB, MP3, FM radio and Bluetooth playback are specified on the current Holl's product page.
Technical specification
| Model | Holl's Purewave Evo 3C |
|---|---|
| SKU | HL-PUR03C |
| Location | Indoor use only |
| Capacity | 3-4 seated |
| External dimensions | W 140 x D 140 x H 190 cm |
| Format | Corner cabin with angled front entrance |
| Infrared output | 2,600 W |
| Infrared emitters | 7 Dual Healthy Quartz and Magnesium emitters plus 1 carbon floor panel |
| Infrared spectrum | IR-A, IR-B and IR-C |
| Power supply | 220/240 V; final circuit requirements must be confirmed by a qualified electrician |
| Cabin timber | FSC-certified Grade A Canadian spruce |
| Bench and headrest | Abachi; bench depth 49 cm |
| Door | 8 mm safety glass |
| Controls | Touch-sensitive control panel |
| Lighting | Seven-colour LED chromotherapy |
| Audio | USB / MP3 / FM radio / Bluetooth resonance audio |
| Loose accessories | Sauna bucket, ladle, hygrometer and hourglass are not specified as standard equipment |
| Warranty | 10 years on wood; 2 years on electrical components, subject to manufacturer terms |
Delivery and installation
Purewave is supplied as a modular indoor cabin for on-site assembly. Before ordering, confirm the complete delivery route, doorway widths, destination-room dimensions, the two wall runs needed for the corner layout and a solid, level, dry installation surface. The manufacturer states a minimum room height of 202 cm and recommends two or three adults for assembly.
The current installation manual calls for a dedicated 1.5 mm² line, 30 mA residual-current protection and an appropriate D-curve circuit breaker. A qualified electrician must confirm the final circuit, cable, isolation and protective devices against the supplied documentation and the installation at the property. Assembly, positioning and final electrical work are separate unless expressly included in your KeiCo order.
Warranty and aftercare
Holl's specifies a 10-year warranty for the wood and a 2-year warranty for electrical components. Cover remains subject to the manufacturer's terms, correct indoor installation, compliant electrical work, proper use and ongoing care.
Plan your Purewave with KeiCo
Share your room measurements, corner position, access route and available electrical provision with the KeiCo team before ordering. We can help confirm the fit, current availability, delivery route and optional professional installation support.
