KC ICON 220 Full Glass Thermowood Garden Sauna
A spacious four-to-six-person Thermowood sauna with a full bronzed-glass front, two-level benching and a configurable electric or wood-fired heat path.
Panoramic Light, Generous Benching and a Stronger Garden Presence
The KC ICON 220 Full Glass Sauna is designed for customers who want the openness of panoramic glazing with enough internal space for family use, guests and more relaxed shared sessions.
Its approximately 2.31 × 2.20m footprint gives the cabin a substantial architectural presence without moving into a multi-room retreat. The full bronzed-glass façade brings the surrounding garden into view, while the softened cube profile and Thermowood construction create a warm, contemporary exterior.
Inside, two-level benches provide different seating heights and a more considered relationship with the heat. The cabin can be supplied for competent self-assembly or taken through a complete KeiCo route covering the heater, base, installation, treatment, lighting and aftercare.
KC ICON 220 at a Glance
- Approximate external size: 2,310 × 2,200 × 2,360mm
- Nominal internal volume: approximately 11.2m³
- Capacity: approximately four to six people
- 42mm Thermowood side-wall construction
- 28mm rear-wall construction
- Full 8mm bronzed tempered-glass façade and entrance door
- Two-level Thermowood and Aspen bench layout
- Backrests, foot supports and floor components
- Roof underlay and bitumen-shingle covering
- Electric or wood-fired heat route selected separately
- Professional KeiCo installation available
A Sauna Room Designed for Shared Use
The ICON 220 provides considerably more usable bench length than the smaller ICON models. Its straighter internal wall sections give users space behind the shoulders, while the higher seating position helps place the body within the warmer part of the room.
Four adults can use the sauna with a comfortable degree of space. Its nominal capacity extends to six depending on the group and seating arrangement, making it suitable for family routines, social bathing and selected guest-facing wellness settings.
The full façade keeps the interior visually connected with the garden. Orientation should be considered carefully: the best position balances the view from the benches with privacy, sun exposure, access and the relationship to any cold plunge, shower or relaxation area.

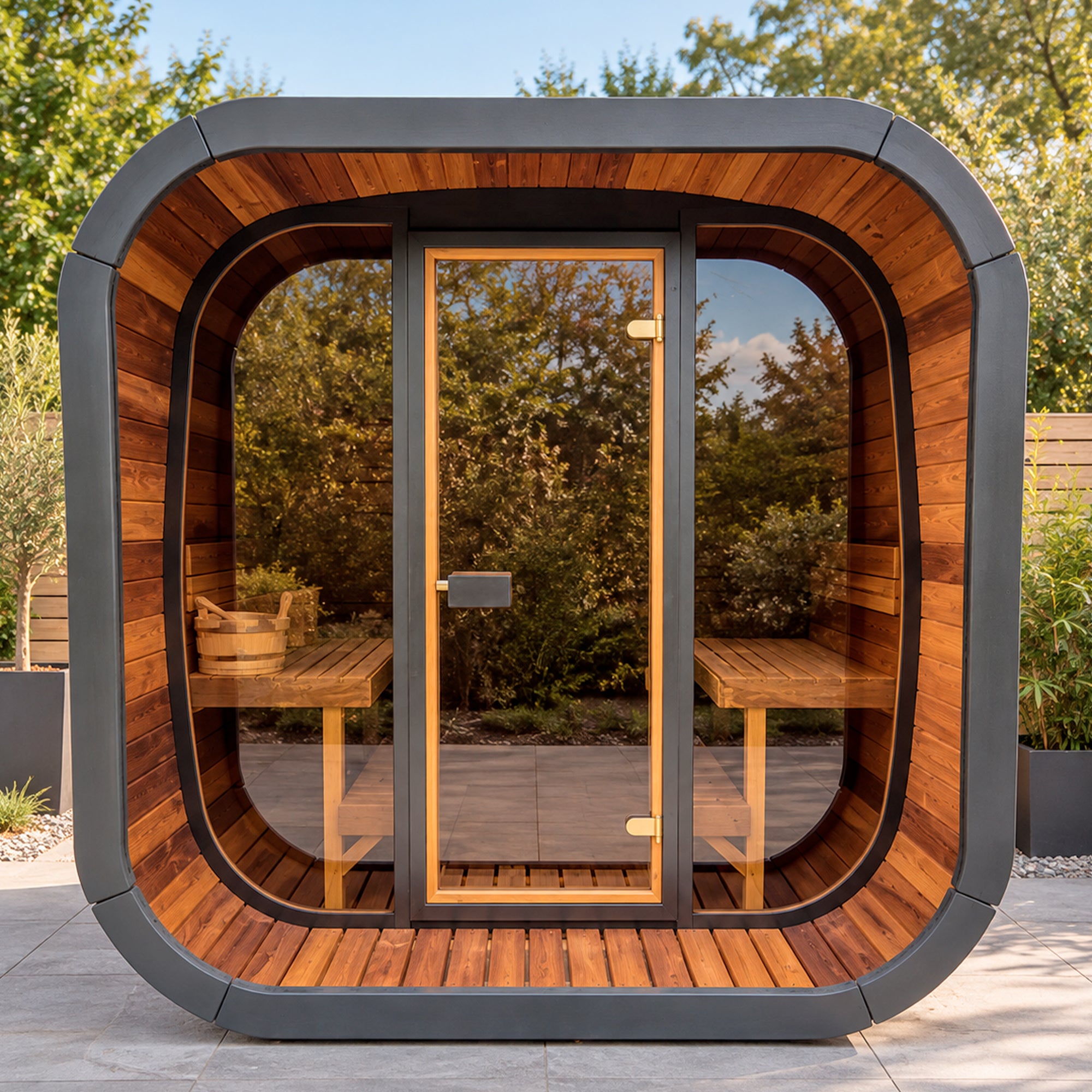

Full Bronzed Glazing
The front wall and entrance are formed in 8mm bronzed tempered safety glass. The tint softens the external view into the cabin and gives the façade a warmer appearance than clear glass while still admitting substantial daylight.
Privacy is not absolute and will vary according to the balance of light inside and outside. Reflections and apparent opacity will also change throughout the day.
The glazing must be included in heater selection because its heat loss differs from the surrounding timber. The final heater package is therefore based on effective volume rather than floor dimensions alone.
Thermowood Construction for Outdoor Use
The main side walls are formed from approximately 42mm Thermowood, with a 28mm rear wall and the structural components required for the selected model.
Heat-treated timber offers improved dimensional stability and reduced moisture movement compared with untreated softwood. It still needs a suitable exterior protection system, correct drainage and ongoing inspection to maintain appearance and support warranty conditions.
The roof includes underlay and bitumen shingles. Final shingle colour, timber finish and any rear-glazing option must match the confirmed order rather than being inferred from illustrative photography.
Choose the Heat Experience
The displayed structure price excludes the heater unless the selected package expressly includes one.
The ICON 220 can support approved electric or wood-fired heat routes, but the available choices must match the full-glass configuration, effective room volume, available power and required safety clearances.
Depending on the final specification, available options may include:
- Approved electric heater, stones and compatible controller
- Manual or WiFi-enabled electric control where available
- Wood-fired heater, chimney and heat-protection package where suitable
- Self-installation or professional KeiCo assembly
- Existing hardstanding or a separately prepared foundation
- Exterior and sauna-appropriate interior timber protection
- Ambient LED lighting
- Compatible rear glazing, ventilation and accessory choices
- Cold-plunge pairing and KeiCo Care
Electric connection must be completed by a qualified electrician. Wood-fired installations require the confirmed flue route, shielding and safe clearances before the order proceeds.
Build Your KeiCo Wellness Space
The cabin is the centre of the project, but the experience depends on the systems and setting around it.
KeiCo can coordinate the base, access, heater, controls, electrical or flue requirements, professional installation, timber finish, lighting and relationship with a cold plunge, shower or hot tub.
The complete Shopify and OPTIS configuration is reviewed before production-source allocation. Any source unable to supply the chosen glass, roof, heater route or inclusions is removed from consideration.
What Is Included
- KC ICON 220 Thermowood sauna structure
- 42mm Thermowood side walls
- 28mm rear-wall construction
- Full 8mm bronzed tempered-glass front and door
- Two-level internal benches and foot supports
- Backrests appropriate to the confirmed model
- Floor, threshold and foundation components
- Roof underlay and bitumen shingles
- Heater guard and ventilation components
- Stainless-steel structural bands
- Assembly fixings and product documentation
Unless expressly included within the quotation, the heater, controls, stones, chimney, electrical work, permanent base, professional assembly, timber treatment, lighting, accessories, rainwater management and specialist unloading are selected separately.
Dimensions and Site Preparation
The cabin measures approximately 2,310mm wide × 2,200mm deep × 2,360mm high, with a nominal internal volume of approximately 11.2m³. The packed kit is approximately 2,350 × 1,200 × 1,200mm and around 900kg, subject to the final source specification.
A firm, level, well-drained and load-bearing foundation is essential. Permanent base work must follow the technical drawing issued for the allocated production source, including exact cradle or bearer positions, external projections and service-entry points.
Before ordering, review vehicle access, gates, turning space, unloading, gradients, boundary clearances, drainage, electrical or chimney routing and the working area needed for assembly and future maintenance.
Lead Time, Delivery and Installation
The standard KC ICON 220 is made to order, with a typical lead time of approximately 10–12 weeks, subject to the selected configuration and production programme.
The structure is normally delivered as a large palletised flat-pack kit. Delivery method, unloading responsibility and professional installation requirements are confirmed for the individual site.
The sauna may be supplied through an approved European partner within KeiCo’s Nordic manufacturing network. Minor non-structural details may vary between compliant allocations; the confirmed dimensions, material, glass, roof and customer-selected configuration remain controlled by the final order documentation.
A Coordinated KeiCo Project
KeiCo can assist with product and heater specification, site layout, base preparation, access planning, electrical coordination, professional installation, timber treatment, lighting, recovery integration and long-term care.
This creates one accountable pathway from the initial product choice to a completed garden wellness space. Specialist and regulated work is completed or coordinated with suitably qualified trades.
Warranty and Continued Care
The KC ICON 220 carries a two-year product warranty, subject to the confirmed specification, correct installation, compliant heater work, suitable exterior protection, intended use and documented maintenance.
KeiCo Care provides ongoing product guidance and a structured route back to the team. Signature Care can be selected where enhanced maintenance, priority support or a more managed ownership experience is required.
Configure Your KC ICON 220
Select the preferred heat, finish and project route, or contact orders@thekeico.com to review the base, access, electrical or flue requirements and complete installation scope.
FAQ's
How many people can the KC ICON 220 sauna accommodate?
The KC ICON 220 is designed for approximately four to six people. Four adults will generally have the most comfortable shared layout, while the nominal capacity extends to six depending on the group and seating arrangement.
What heater is suitable for the full-glass KC ICON 220?
The correct heater is selected from the cabin’s approximately 11.2m³ nominal volume plus the full-glass allowance. KeiCo will restrict the available electric or wood-fired packages to options approved for the final glass, power supply and safety clearances.
Does the full glass front provide privacy?
The 8mm bronzed glass softens the view into the sauna and reduces visual openness compared with clear glass. It is not one-way glass, so privacy varies with internal lighting, daylight, orientation and the surrounding garden.
What base does the KC ICON 220 require?
A firm, level, well-drained and load-bearing foundation is essential. Suitable solutions may include a correctly designed concrete slab, reinforced paving or an engineered structural base. Exact cradle or bearer positions must follow the allocated source drawing.
Can KeiCo provide delivery and professional installation?
Yes. The sauna may be supplied as a palletised flat-pack kit for competent self-assembly, or KeiCo can quote for professional installation. Base preparation, heater specification, electrical or flue coordination, timber protection, lighting and aftercare can also be included within the agreed scope.
